Heat Stove for Dryer

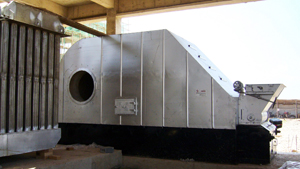

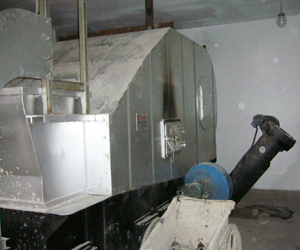

RH solid fuel stove RSL high efficiency solid fuel stove

Heat stove is a machine that being equipped with mechanical stoker, and adopts wood pellets, wood block (no more than 50mm), and shells for fuel. Through two-grade burning and two-time dust filtering can obtain clean hot smoke and gas when making your own wood pellets. In addition, the heat stove is also widely used in the drying of inedible materials, such as seeds, saw dust, feedstuff, chicken manure, dregs, foundry sand and so on. The main components are auto fuel elevator, auto fuel feeding machine, stove body and electrical cabinet.

The main function of every part of heavy stove:

  • Auto fuel elevator: it is in front of stove body, and fuel bucket, guide rail frame, support flate, elevating machine and gear box are the main constituent parts, elevating fuel bucket automatically and dumping the fuel into fuel box is the function of auto fuel elevator.
  • Auto fuel feeding machine: it drives fuel into stove body. Under the fire grate has four separate air chambers. By adjusting air volume of each chamber through hand wheel can make sure different fuel burn sufficiently.
  • Stove body: it consists of fire grate assembly, primary chamber and secondary chamber. Refractory concrete is full of the inside of fire chamber, and in order to adjust the thickness of fuel bed, fuel flashboard is adopted when make your own pellets. There are fire doors on the two sides of primary chamber in order to ignite and observe burning circs, moreover to move coking fuel bed for sufficiently burning. There is fire bar, ash passage and inspection hole in secondary chamber. A quantity of combustible gas will be burned sufficiently in secondary chamber. The smoke and gas can be purified by the double grade cyclone dust filter in secondary chamber.
  • Electrical cabinet: France SCHNEIDER brand is adopted in the main electrical components. Power switch, three grades protecting device, voltage meter, ampere meter, temperature digital control, overheat and overload protecting device, time relay, thermal relay and several buttons which control fuel feeding, elevator, fan and air lead are the main components of electrical cabinet.

The drawing of electrical system element is as follows:

schematic diagram of heat stove

Heat stove technical parameter

Heat capability104KJ/h 60
Wood block thermal value104Kcal/h 3500
Operation method Auto
Block consume kg 205-235
Thermal efficiency % 75
Flue exhaust temperature 700-800
Output air volume 103m3/h 7-14
Frequency conversion timing motor type YVP80M1
Induced fan type Y5-47NO.5C
Power 7.5kw Rotate speed 2900n/min
Wind pressure 2264Pa Air volume 5360m3/h
Fan type 4-72-12NO.3.2A
Power 2.2kw Rotate speed 2900n/min
Wind pressure 1025Pa Air volume 2210m3/h
External dimensions mm*mm*mm 4730*1940*3042
Weight 8000Kg
