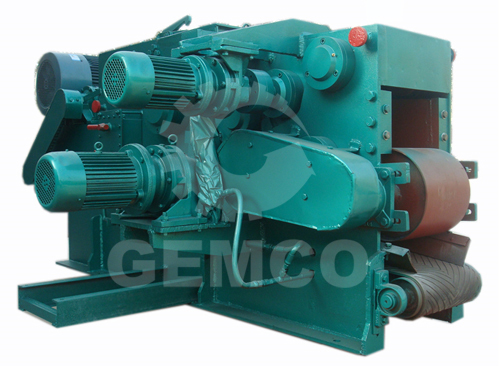

Usually, the size of raw material is not suitable for direct pelletizing, and then on this occasion, you need a wood chipper or wood chip pellet maker which can cut your material into small pieces. In GEMCO, we mainly use the drum chipper. Our drum chipper can process wood logs, wood thick branches, slab, bamboo, cotton stalks, thick straws and other non-wood fiber stalk into slices of 20-30mm.
With the features of high capacity, compact structure, easy operation and maintenance, GEMCO wood chipper will be your best choice.
| Model | B*215 | B*216 | B*218 | B*2113 |
|---|---|---|---|---|
| Cutter(piece) | 2 | 2 | 2 | 2 |
| Speed(rpm) | 592 | 590 | 650 | 500 |
| Max.allowed(mm) | 160 | 230 | 300 | 450 |
| Outputs size(mm) | 30 | 30 | 30 | 38 |
| Capacity(ton) | 3-4 | 7-8 | 12-15 | 15-30 |
| Main motor power(KW) | 45 | 55 | 110 | 200-250 |
| Feeder roller motor power(KW) | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
| Oil pump motor power(KW) | 1.5*1 | 1.5*1 | 1.5*1 | 3*1 |
| Weight(kg) | 2990 | 4070 | 7000 | 11840 |
| Outer dimension(mm) | 1470*1550*970 | 1800*1900*1210 | 2200*2150*1500 | 3670*2517*2050 |
| Conveyor motor power(KW) | 3 | 3 | 3 | 3 |
Diesel pellet machine and screw conveyor are specially designed for our customer. The trial run is successful. Welcome to consult and order....
